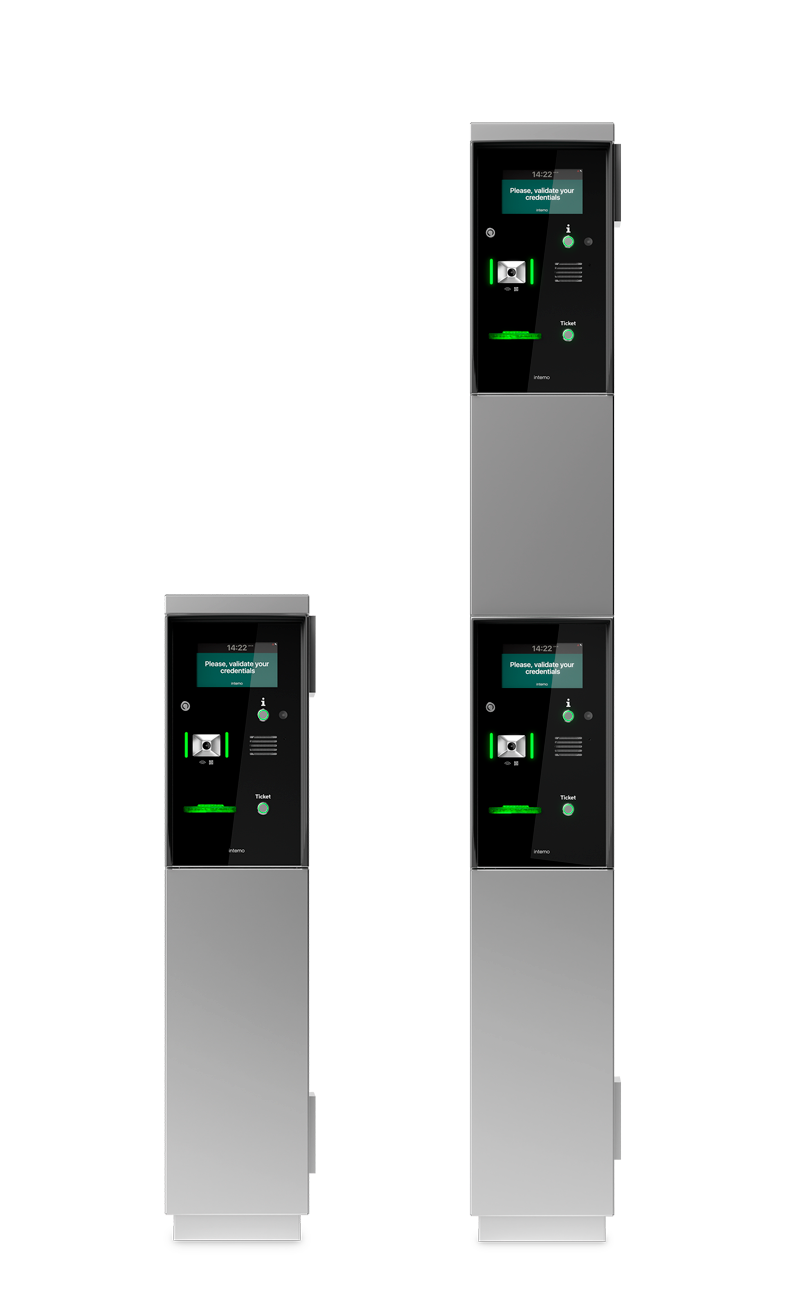

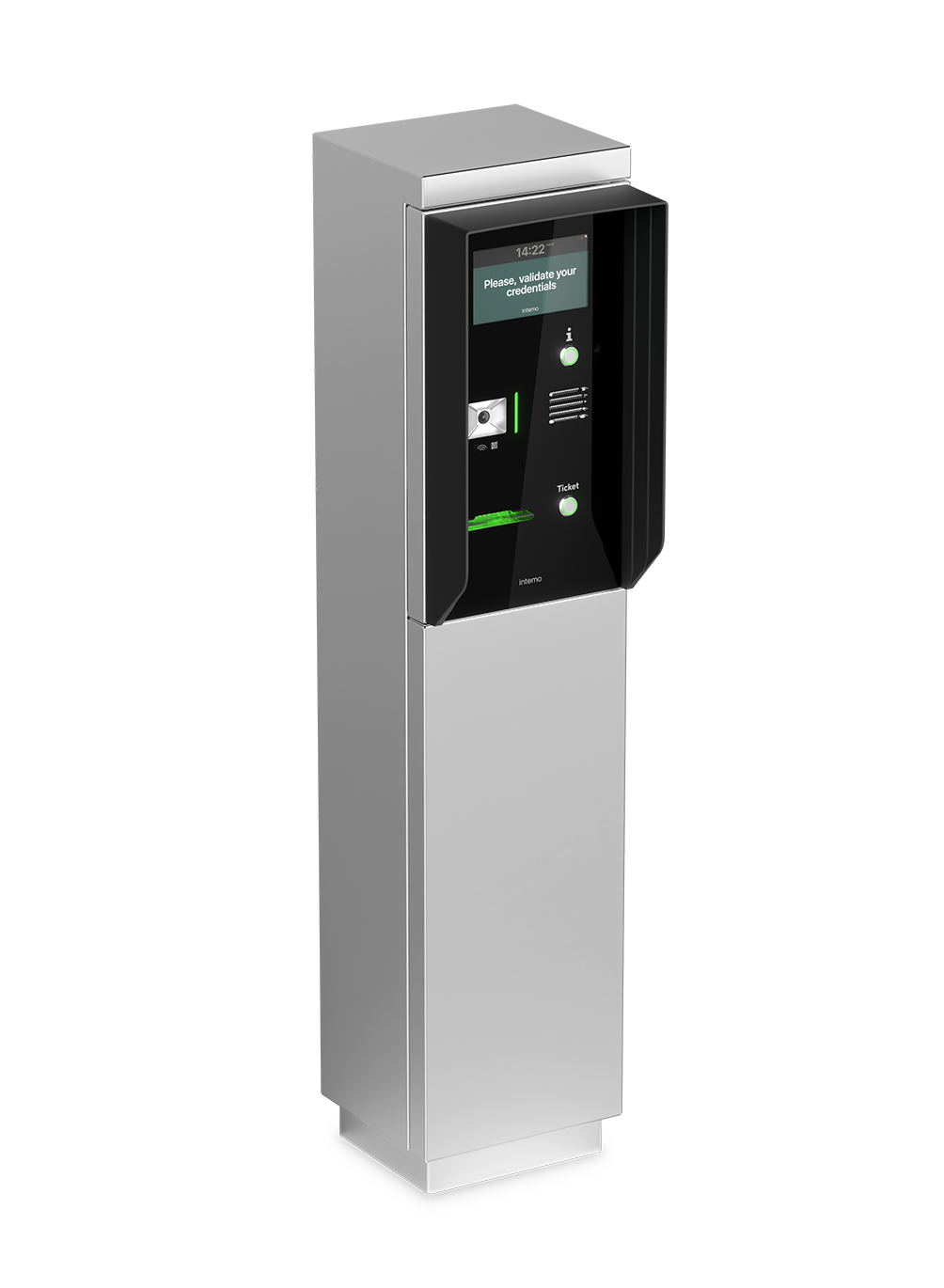

FastPass-Car & FastPass-Truck

Flow in
motion

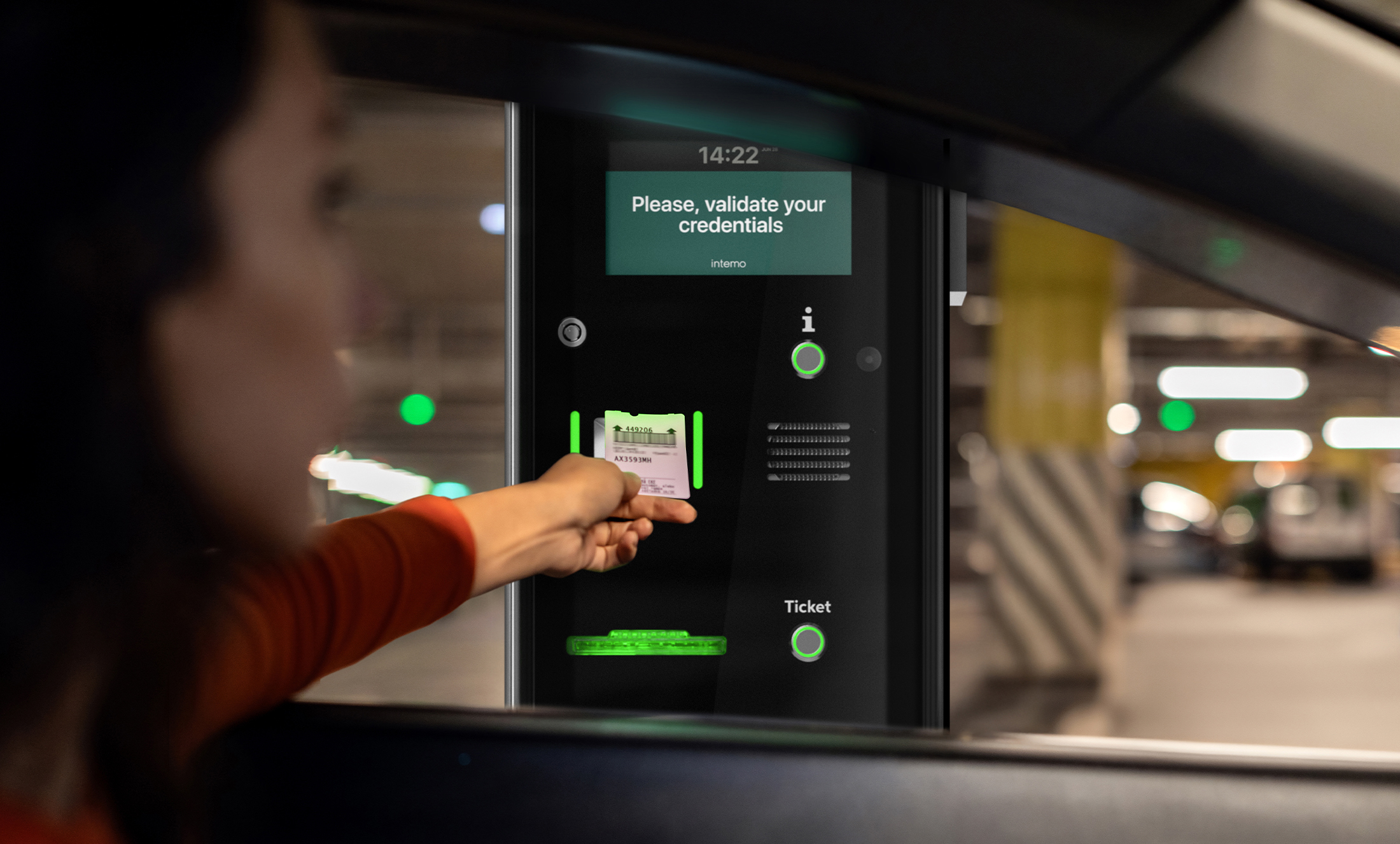

Smart vehicle access control that integrates automation and efficiency to optimise queue-free entry and exit. It all starts with FastPass.

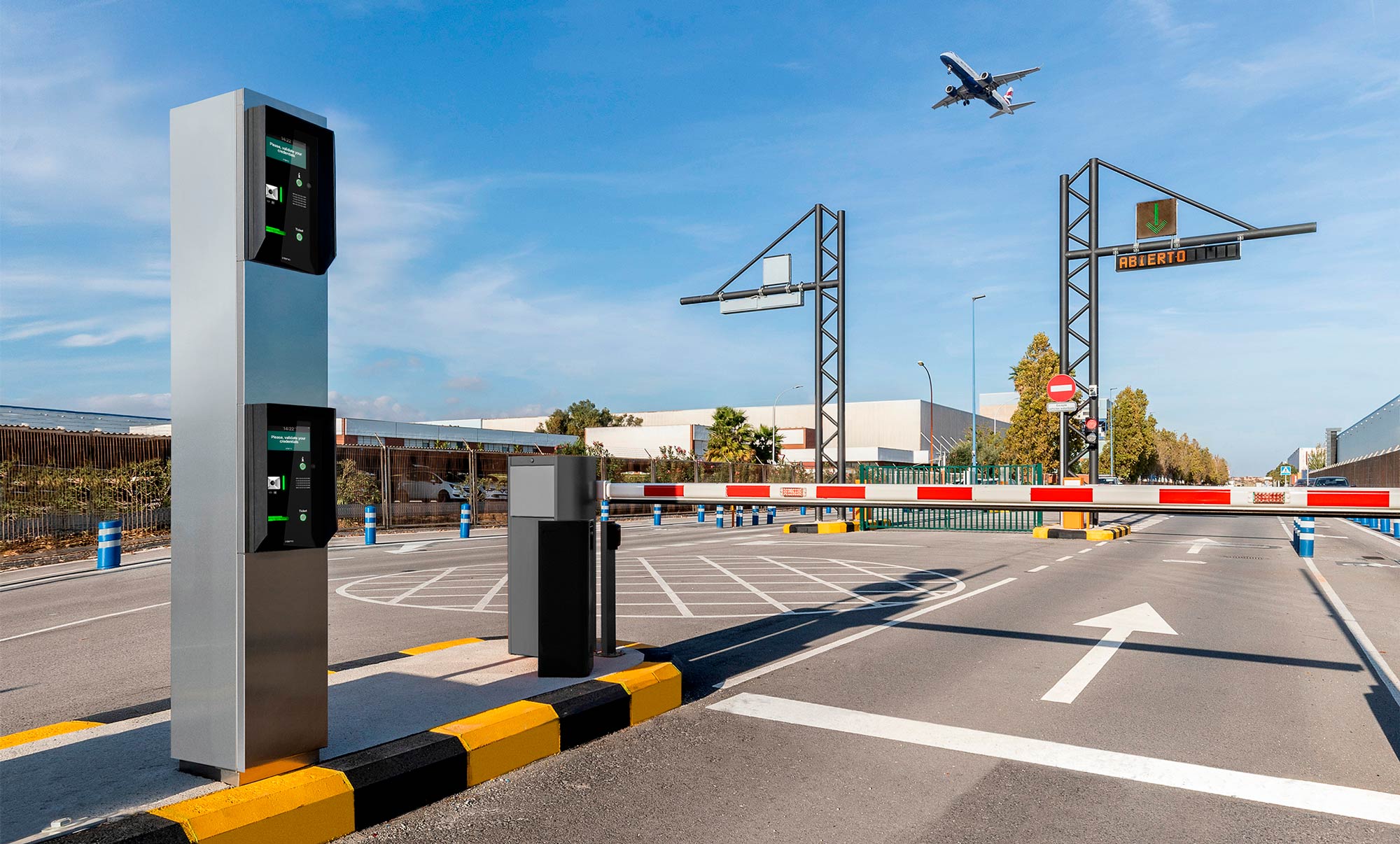

Vehicle access control systems

Main features

Designed to move forward

High-brightness outdoor screen (7”)

RFID, NFC and QR reader

IP intercom featuring bidirectional audio

Thermal printer

Robust stainless steel structure

More than just access: Operational automation

FastPass-Car & FastPass-Truck not only control who enters or exits: they integrate with your facility’s operational logic, connecting with external systems and reducing human intervention.

Smart integration:

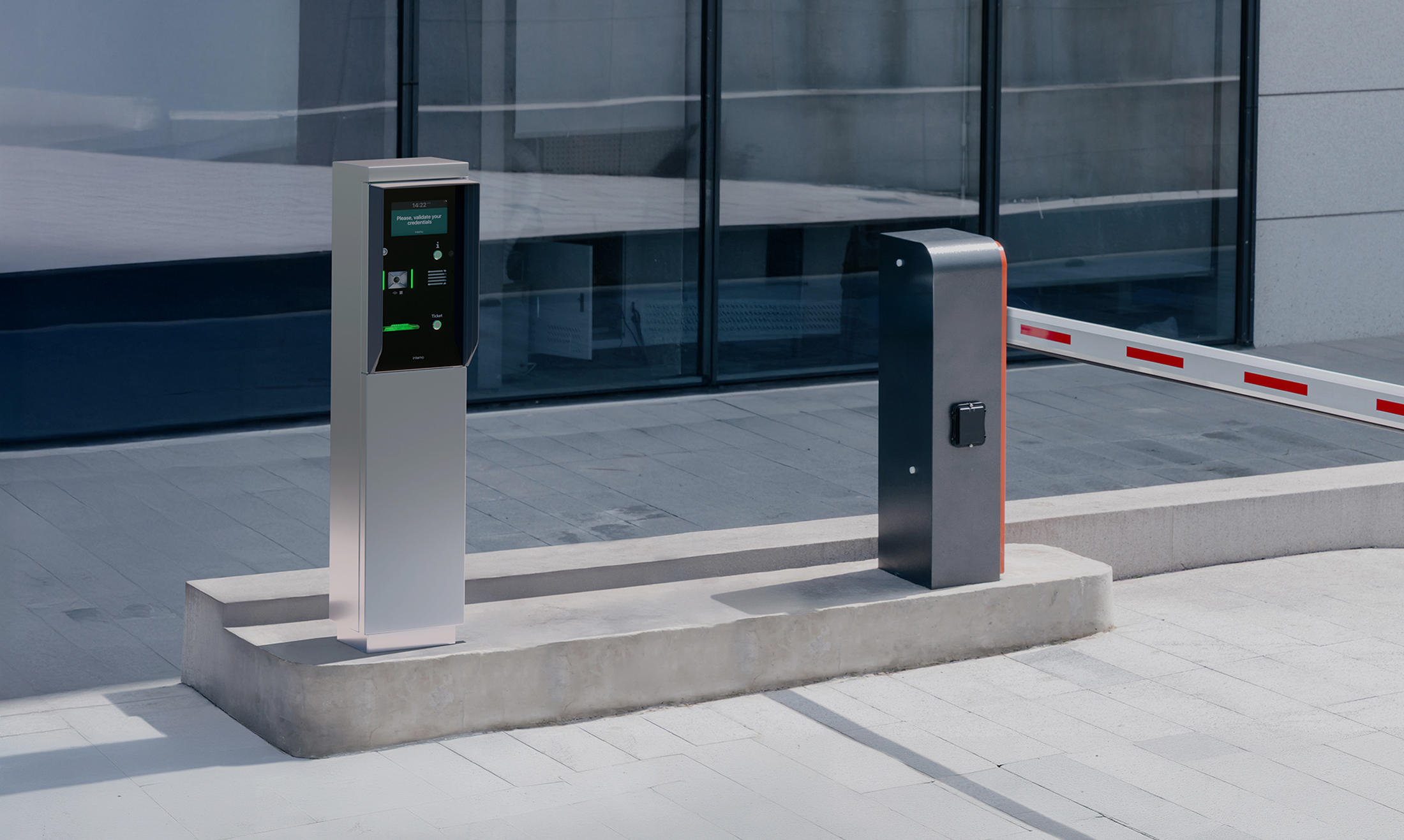

Automatic barrier opening

Inductive loop for vehicle detection

Barrier malfunction or failure detection

Height restriction detector

PLC
connection

Integration with SCADA / BMS systems

Remote monitoring and centralised control

Automatic barrier opening

Inductive loop for vehicle detection

Barrier malfunction or failure detection

Height restriction detector

PLC connection

Integration with SCADA / BMS systems

Remote monitoring and centralised control

Technology integrated into every detail

Designed to last, adapt and simplify every daily operation.

Corrosion-resistant stainless steel structure

Robust, durable, and designed for outdoor use. Constructed from AISI 3006 stainless steel.

Resistant rubber visor

Provides protection from direct sunlight and rain, while minimizing the risk of damage from bumps or impacts.

Thermal printer

Ticket or receipt issuance, with easy-access paper roll replacement. (optional)

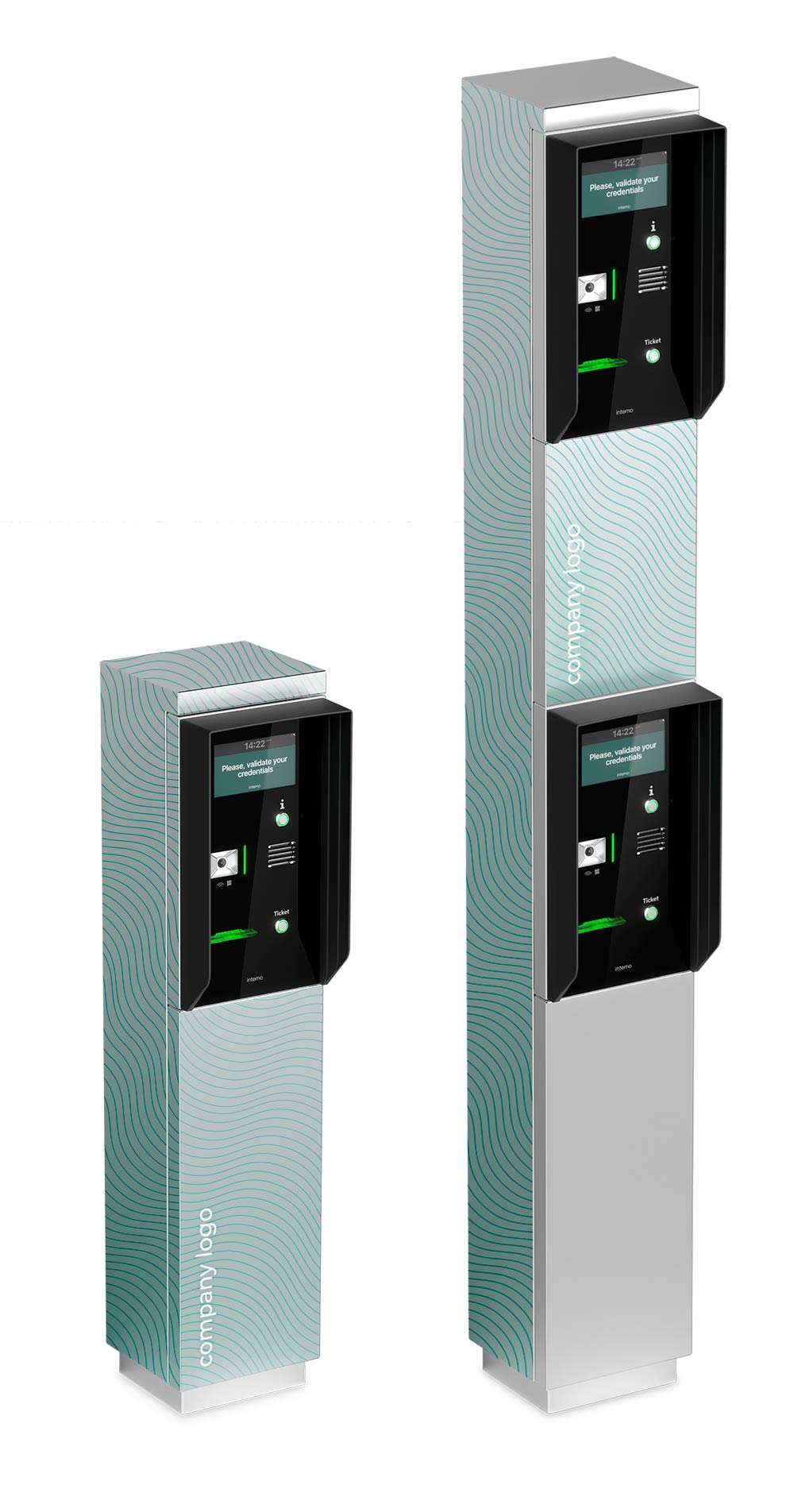

Visual customization

Vinyl-wrapped device featuring corporate branding and on-screen logo integration.

7” screen

Legible and durable interface, optimised for outdoor use.

IP Camera

Optional camera for driver image capture.

IP intercom

Two-way audio for remote communication.

Multi-media ID reader

RFID proximity cards and NFC reading compatible with Android and iOS. BLE for remote control via mobile phone. QR codes on paper and mobile devices.

Advanced integration and customised projects

Designed for complex environments. Ready for anything. The solution adapts. The experience improves.

LPR’s

Automatic number plate recognition

PLC’s

Process automation

Inductive loops

Presence/vehicle detection

CCTV

Monitoring and recording associated with events

Dynamic signage

Visual guides for drivers

Intercom adapted to project

IP or analogue network.

Management of corporate visits

Automatic access via registered number plate

Management of transit in logistics parks

With a customised web interface

LPR's

Automatic number plate recognition

PLC's

Process automation

Inductive loops

Presence/vehicle detection.

CCTV

Monitoring and recording associated with events

Dynamic signage

Visual guides for drivers

Intercom adapted to project

IP or analogue network.

Management of corporate visits

Automatic access via registered number plate

Management of transit in logistics parks

With a customised web interface

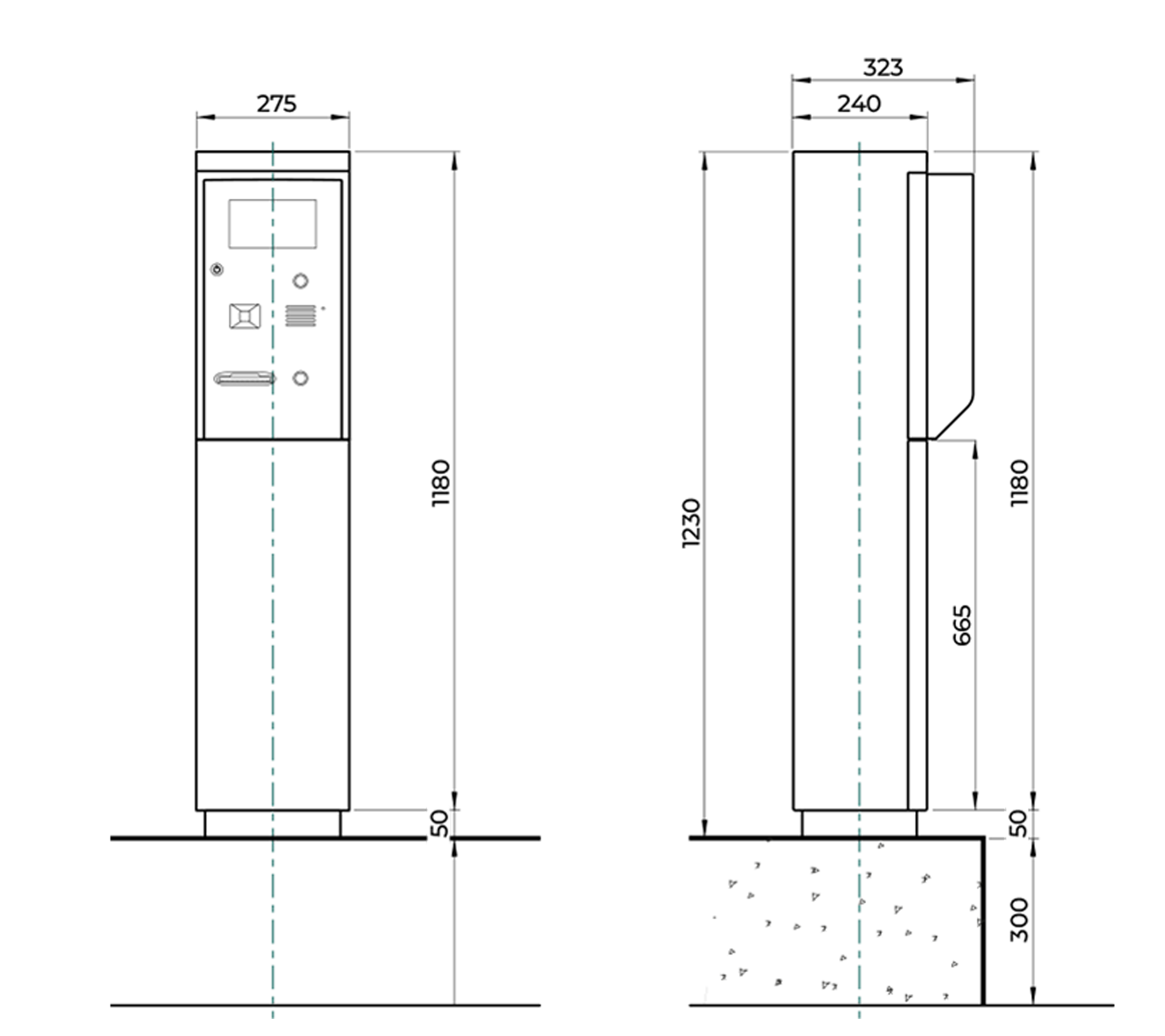

Dimensions

A solution adaptable to your needs

Our Apps

Intemo Technologies offers integral or modular solutions through its app Intemobile Access, driving digital transformation with features such as access control, visitor management, time tracking, and space reservations.

Access control

Reservation of spaces and services

Time management

Visitor management

Learn +

Available on:

Product features, FastPass-Car & FastPass-Truck

Screen

7’’ screen with adaptive backlight

Interfaces

Ethernet TCP/IP, CAN BUS.

Memory

RAM 1Gb DDR3, and data capacity 8 Gb flash eMMC.

Outputs

2 switchable relays for control of external mechanisms.

Inputs

2 opto-isolated inputs.

Cards

HF 13,56MHz, Mifare® / Desfire® / ICode® / eCard NFC for Google and Apple.

Power

8-port PoE switch.

Security

Cryptographic core AES-128, DES 3DES, ARC4, MD5, SHA-1, SHA-224

Ventilation

Forced ventilation with fans providing 3.1 m³ /min airflow starting at 30°C.

Camera

IP Camera

Electrical protections

Integrated electrical protections (16A circuit breaker and 40A 30mA residual current device).

Barcode reader

State-of-the-art scanning technology.
Small scanner dimensions (45 mm x 34 mm).
Oriented for code reading from all smartphones and tablets.
Wide scanning angle and optimised for short distance scanning.
640 x 480 CMOS image sensor.
White LED illumination.
Notifications: audible beeper.
1D and 2D barcode scanning.

Screen 7’’ screen with adaptive backlight.

Interface Ethernet TCP/IP, CAN BUS.

Memory RAM 1Gb DDR3, and data capacity 8 Gb flash eMMC.

Outputs 2 switchable relays for control of external mechanisms.

Inputs 2 opto-isolated inputs.

Cards HF 13,56MHz, Mifare® / Desfire® / ICode® /eCard NFC for Google and Apple.

Power 8-port PoE switch.

Security Cryptographic core AES-128, DES 3DES, ARC4, MD5, SHA-1, SHA-224.

Ventilation Forced ventilation with fans providing 3.1 m³ /min airflow starting at 30°C.

Camera IP Camera

Electrical protections Integrated electrical protections (16A circuit breaker and 40A 30mA residual current device).

Barcode reader State-of-the-art scanning technology.
Small scanner dimensions (45 mm x 34 mm).
Oriented for code reading from all smartphones and tablets.
Wide scanning angle and optimised for short distance scanning.
640 x 480 CMOS image sensor.
White LED illumination.
Notifications: audible beeper.
1D and 2D barcode scanning.
